Mastering RabbitMQ Exchanges: A Beginner-Friendly Guide with Node.js

Learn how RabbitMQ exchanges work through relatable stories, detailed explanations, and hands-on Node.js examples.

Imagine two friends, Rohan and Priya, running a small online store from Delhi. They receive orders from customers all over India and need a reliable system to deliver notifications—to their logistics team, customers, and suppliers—every time an order is placed. Handling these messages manually is overwhelming, so Rohan suggests using a messaging system called RabbitMQ to automate the process.

“Rabbit… what?” Priya asks, raising an eyebrow.

“RabbitMQ! It’s like a central post office,” Rohan explains. “We can send messages to it, and it’ll make sure the right people get them. Think of it as a smart delivery system for all our notifications.”

Curious? Let’s dive into how RabbitMQ works, focusing on exchanges, the heart of its messaging system.

What is RabbitMQ?

RabbitMQ is a message broker. It’s software that helps applications communicate by sending messages between them. These messages are sent to a central server (RabbitMQ) and then distributed to appropriate destinations.

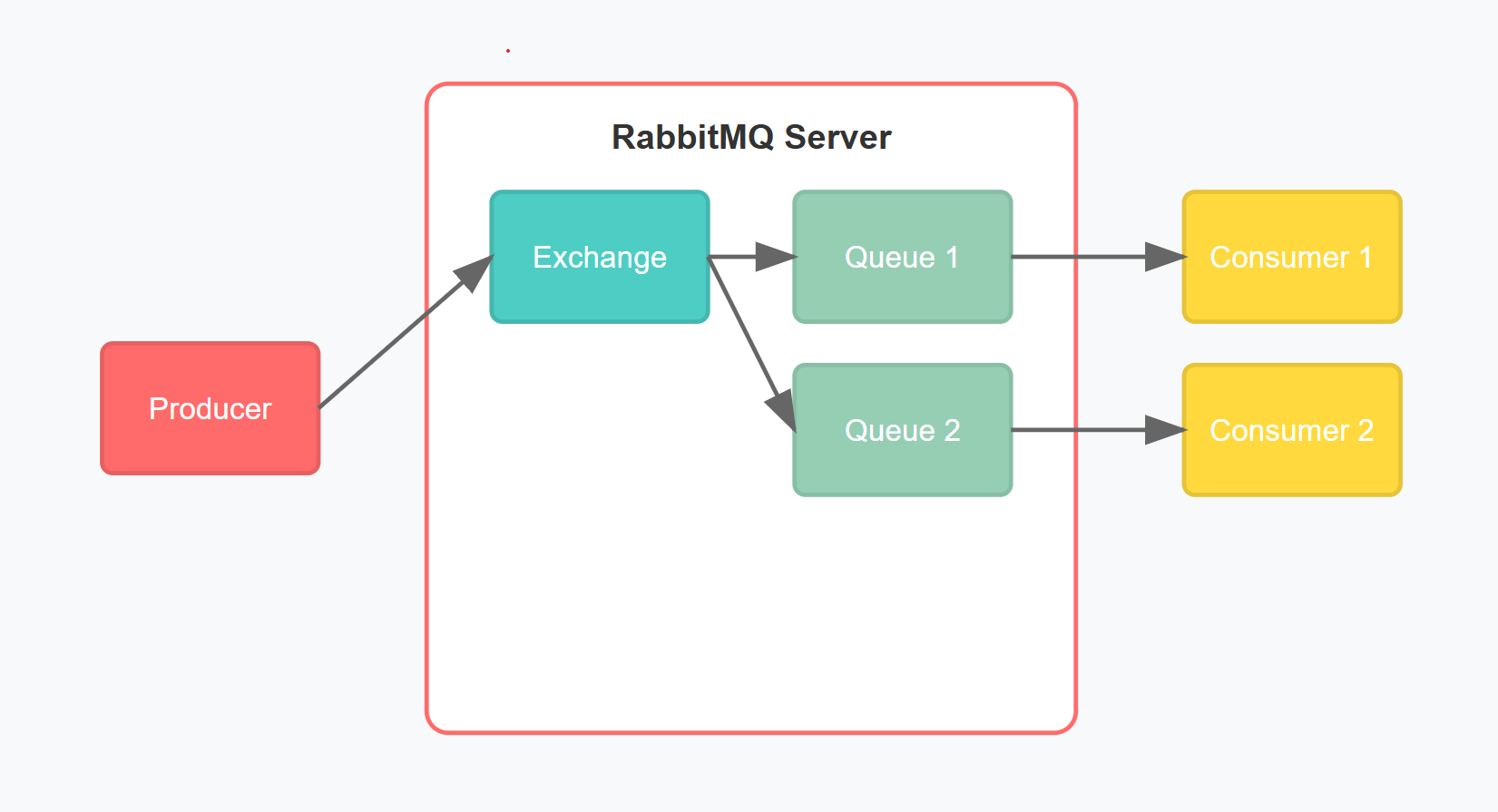

Here’s how it works:

1. Applications (producers) send messages to exchanges in RabbitMQ.

2. Exchanges decide where to send these messages.

3. Messages are forwarded to queues, where applications (consumers) pick them up.

See following youtube playlist to know more about RabbitMQ : RabbitMQ Ninza

What are exchanges in RabbitMQ ?

Exchanges are like switchboards. They receive messages from producers and decide which queue(s) should get each message. RabbitMQ supports four types of exchanges:

1. Direct Exchange

2. Fanout Exchange

3. Topic Exchange

4. Headers Exchange

Let’s understand each type with examples and code.

Setting Up RabbitMQ in Node.js

Before we dive into exchanges, ensure you have RabbitMQ installed. You can download it here.

Install the amqplib library in your Node.js project:

npm install ampqlib

1. Direct Exchange in RabbitMQ

A direct exchange routes messages to queues based on a specific routing key. Think of it as sending a letter with a precise address.

Key Properties:

• Routing key: A string used to determine which queue receives the message.

• Queue binding: Each queue must be bound to the exchange with a specific routing key.

• Use case: Use direct exchanges when you need to deliver messages to a specific queue, like logging errors by severity (e.g., error, info, warning).

Example: Order Notifications

Rohan and Priya want logistics notifications to go to the "logistics" queue and payment updates to the "payments" queue.

Code:

Producer (send.js):

const amqp = require('amqplib');

async function send() {
  const connection = await amqp.connect('amqp://localhost');
  const channel = await connection.createChannel();
  const exchange = 'direct_logs';

  await channel.assertExchange(exchange, 'direct', { durable: false });

  const routingKey = 'logistics'; // Try 'payments' for a different queue
  const message = 'Order dispatched!';

  channel.publish(exchange, routingKey, Buffer.from(message));
  console.log(`Sent: '${message}' to routing key '${routingKey}'`);

  setTimeout(() => connection.close(), 500);
}

send();

Explanation:

1. Connects to the RabbitMQ server at amqp://localhost.

2. Creates a channel to communicate with RabbitMQ.

3. Declares a direct exchange named direct_logs.

4. Publishes a message (Order dispatched!) with a routing key (logistics).

5. The message will be routed to any queue bound to direct_logs with the logistics routing key.

Consumer (receive.js):

const amqp = require('amqplib');

async function receive() {
  const connection = await amqp.connect('amqp://localhost');
  const channel = await connection.createChannel();
  const exchange = 'direct_logs';

  await channel.assertExchange(exchange, 'direct', { durable: false });

  const queue = await channel.assertQueue('', { exclusive: true });
  const routingKey = 'logistics';

  console.log(`Waiting for messages in queue: ${queue.queue}`);

  channel.bindQueue(queue.queue, exchange, routingKey);

  channel.consume(queue.queue, (msg) => {
    if (msg.content) {
      console.log(`Received: '${msg.content.toString()}'`);
    }
  }, { noAck: true });
}

receive();

Explanation:

1. Connects to RabbitMQ and creates a channel.

2. Declares the same direct exchange (direct_logs).

3. Creates a temporary, exclusive queue (deleted when the connection closes).

4. Binds the queue to the exchange with the logistics routing key.

5. Consumes messages from the queue and logs them to the console.

Run send.js to send a message and receive.js to receive it.

2. Fanout Exchange in RabbitMQ

A fanout exchange sends messages to all queues bound to it. It’s like a loudspeaker—everyone hears the message.

Key Properties:

• Routing key: Ignored by fanout exchanges.

• Queue binding: All queues bound to the exchange receive the message.

• Use case: Use fanout exchanges for broadcast messaging, such as system-wide alerts or promotional notifications.

Example: Marketing Broadcasts

Rohan and Priya want to send promotional messages to all customers.

Code:

Producer:

// Similar to send.js but with 'fanout' exchange type
const exchange = 'logs';
await channel.assertExchange(exchange, 'fanout', { durable: false });
channel.publish(exchange, '', Buffer.from('Big sale!')); // Empty routing key

Explanation:

1. Declares a fanout exchange named logs.

2. Publishes a message (Big sale!) with an empty routing key. All bound queues receive the message.

Consumer:

// Similar to receive.js but using 'fanout'
const exchange = 'logs';
await channel.assertExchange(exchange, 'fanout', { durable: false });

Explanation:

1. Declares the same fanout exchange (logs).

2. Queues bound to this exchange will receive all messages published to it.

---

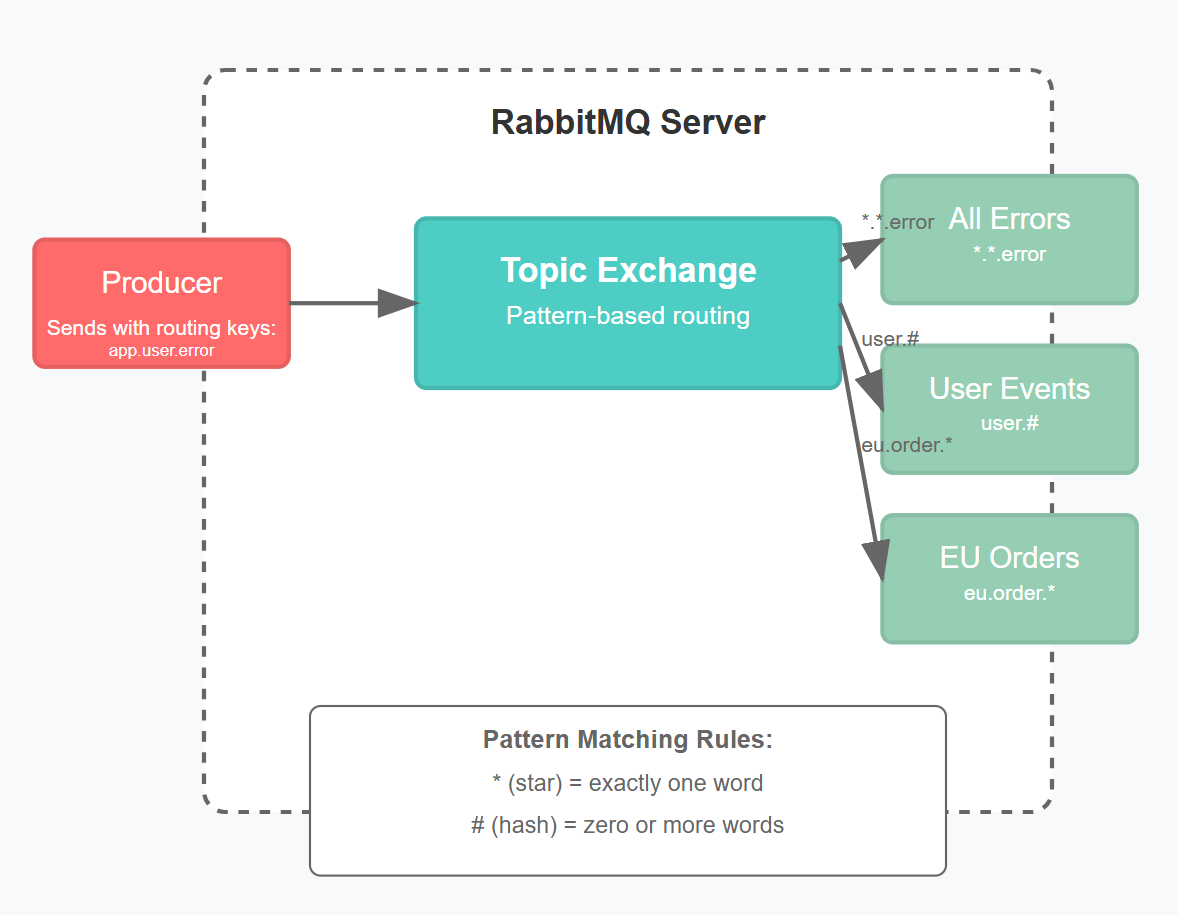

3. Topic Exchange in RabbitMQ

A topic exchange routes messages based on patterns in the routing key. Use dots (.) to separate words in the key.

Key Properties:

• Routing key: Patterns are matched using * and #.

  • *: Matches exactly one word.

  • #: Matches zero or more words.

• Queue binding: Queues can subscribe to patterns to receive specific messages.

• Use case: Use topic exchanges for complex routing scenarios, such as region- or service-specific notifications.

Example: Region-Specific Notifications

Send notifications to North or South India based on regions like india.north or india.south.

Code:

Producer:

const exchange = 'topic_logs';
await channel.assertExchange(exchange, 'topic', { durable: false });
channel.publish(exchange, 'india.north', Buffer.from('Hello North India!'));

Explanation:

1. Declares a topic exchange named topic_logs.

2. Publishes a message (Hello North India!) with the routing key india.north.

Consumer:

const exchange = 'topic_logs';
await channel.assertExchange(exchange, 'topic', { durable: false });
channel.bindQueue(queue.queue, exchange, 'india.*'); // Matches 'india.north', 'india.south'

Explanation:

1. Declares the same topic exchange.

2. Binds the queue to match messages with routing keys starting with india. and followed by one word.

---

4. Headers Exchange in RabbitMQ

A headers exchange routes messages based on headers instead of routing keys.

Key Properties:

• Headers: Messages include custom headers as key-value pairs.

• Matching: Supports x-match property:

  • all: All headers must match.

  • any: At least one header must match.

• Use case: Use headers exchanges when routing requires non-string attributes or multiple criteria.

Example:

Filter messages by content type, like application/json.

Code:

Producer:

const exchange = 'headers_logs';
await channel.assertExchange(exchange, 'headers', { durable: false });
channel.publish(exchange, '', Buffer.from('Header message'), {
  headers: { content_type: 'application/json' },
});

Explanation:

1. Declares a headers exchange named headers_logs.

2. Publishes a message with a content_type header set to application/json.

Consumer:

const exchange = 'headers_logs';
await channel.assertExchange(exchange, 'headers', { durable: false });
channel.bindQueue(queue.queue, exchange, '', {
  arguments: { 'content_type': 'application/json' },
});

Explanation:

1. Declares the same headers exchange.

2. Binds the queue to match messages with a content_type header of application/json.

---

Wrapping Up

With RabbitMQ and exchanges, Rohan and Priya built a robust system to handle their notifications. They now spend less time managing logistics and more time growing their business. Similarly, you can use RabbitMQ to build scalable and reliable messaging systems for your applications.

Try the examples above, and you’ll master RabbitMQ exchanges in no time! Need help? Drop your questions below.
